Home Downlights Modular Downlight DLDM-3-CCT

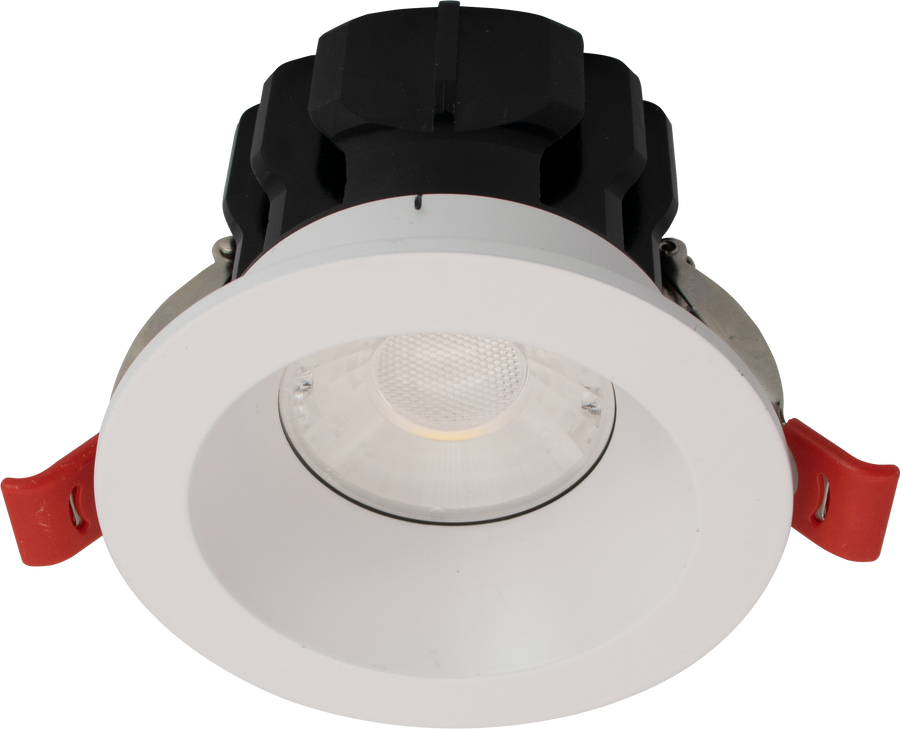

DLDM-3-CCT
DLDM-3-CCT
DLDM-3-CCT
DLDM-3-CCT
DLDM-3-CCT
DLDM-3-CCT
DLDM-3-CCT
DLDM-3-CCT
DLDM-3-CCT

DLDM-3-CCT

9W
1050
90+
Color Temperature
2700K
3000K
3500K
4000K
and 5000K
Options
Certification

Overview

The 3" sibling in the DLDM family — same 5-in-1 field-selectable CCT and low-glare optics, sized for tighter ceiling applications without giving up trim flexibility.

  • 9W — 1,050 lumens, 90 CRI, 117 lm/W
  • 5-in-1 CCT select — 2700K–5000K, field adjustable
  • IC-Rated, Air-Tight, Wet Location
  • Dimmable — MLV, ELV, 0–10V
  • ETL Listed, JA8/Title 24 compliant
  • 5-Year Warranty

Specifications

Size3
Wattage9W
Lumens1050 lm
CRI90+
Color Temperature (CCT)Selectable 2700K,3000K,3500K,4000K,and 5000K
Voltage120V, 60Hz
DimmingELV/0-10v
MountingRecessed
FinishWhite
Dimensions1-7/8x2-7/8
Beam Angle60
Operating Temperature0 - 110 degree F

Line Drawings
