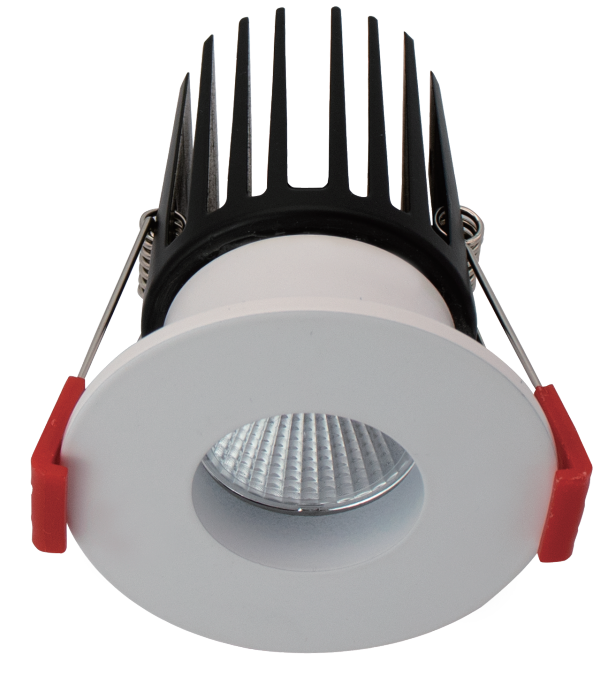

DLDM-1-CCT
DLDM-1-CCT
DLDM-1-CCT

DLDM-1-CCT

9W
800
90+
Color Temperature
2700K
3000K
3500K
4000K
and 5000K
Options
Certification

Overview

The smallest aperture in the DLDM modular downlight family — a low-glare, high-CRI downlight built for the tightest ceiling profiles without sacrificing field-selectable color temperature.

  • 9W — 800 lumens, 90 CRI, 89 lm/W
  • 5-in-1 CCT select — 2700K–5000K, field adjustable
  • IC-Rated, Air-Tight, Wet Location
  • Dimmable — Triac, ELV, 0–10V
  • ETL Listed, JA8/Title 24 compliant
  • 5-Year Warranty

Specifications

Size1
Wattage9W
Lumens800 lm
CRI90+
Color Temperature (CCT)Selectable 2700K,3000K,3500K,4000K,and 5000K
Voltage120V, 60Hz
DimmingELV/0-10v
MountingRecessed
FinishWhite
Dimensions2x3-15/16"
Beam Angle60
Operating Temperature0 - 110 degree F

Line Drawings

DLDM-1-CCT drawing 1
