DLDM-2-CCT
DLDM-2-CCT
DLDM-2-CCT

DLDM-2-CCT

15W
1000
90+
Color Temperature
2700K
3000K
3500K
4000K
and 5000K
Options
Certification

Overview

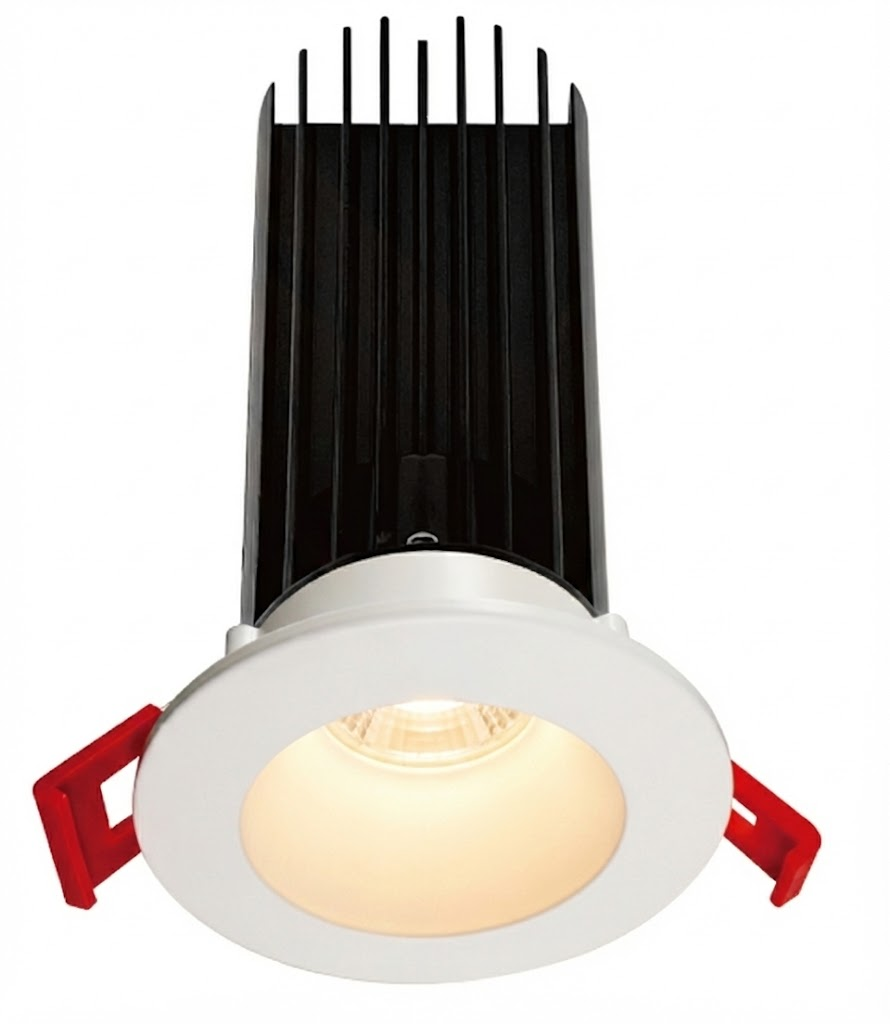

A compact 2" modular downlight with the same low-glare, high-efficiency DLDM design — converts from trimmed to trimless, round to square, making it a go-to for tighter installs.

  • 15W — 1,100 lumens, 90 CRI
  • 5-in-1 CCT select — 2700K–5000K, field adjustable
  • IC-Rated, Air-Tight, Wet Location
  • Dimmable — Triac, ELV, 0–10V
  • ETL Listed, JA8/Title 24 compliant
  • 5-Year Warranty

Specifications

Size2
Wattage15W
Lumens1000 lm
CRI90+
Color Temperature (CCT)Selectable 2700K,3000K,3500K,4000K,and 5000K
Voltage120V, 60Hz
DimmingELV/0-10v
MountingRecessed
FinishWhite
Dimensions2.75x4.9
Beam Angle60
Operating Temperature0 - 110 degree F

Line Drawings

DLDM-2-CCT drawing 1
