Home Recessed Multiples DL-M-5-CCT-TL
DL-M-5-CCT-TL
DL-M-5-CCT-TL
DL-M-5-CCT-TL
DL-M-5-CCT-TL
DL-M-5-CCT-TL
DL-M-5-CCT-TL
DL-M-5-CCT-TL

DL-M-5-CCT-TL

10W
650
65
80+
Color Temperature
2700K
3000K
3500K
4000K
and 5000K
Certification

Overview

A sophisticated modular approach to linear lighting, available in 5-head (10W) and 10-head (18W) configurations, with a black anti-glare shield and precision reflectors for superior luminance control.

  • 5 or 10-head configurations — 750 or 1,350 lumens
  • 90+ CRI, 5-CCT field selectable
  • Trimmed or trimless, Matte White or Matte Black
  • 100–277V universal input, Triac dimming
  • ETL Listed, Wet Location, 5-Year Warranty

Specifications

Size5
Wattage10W
Lumens650 lm
Lumen per Watt65 lm/W
CRI80+
Color Temperature (CCT)Selectable 2700K,3000K,3500K,4000K,and 5000K
Voltage120, 60hz
DimmingELV
MountingRecessed
FinishWHITE
Dimensions5
Operating Temperature0-100F

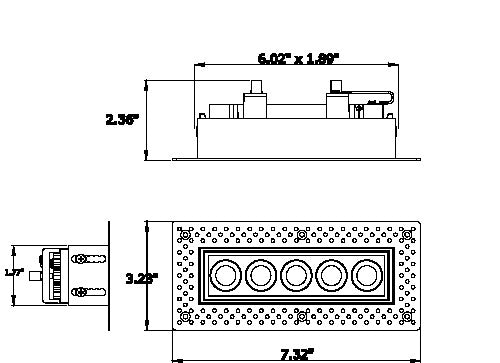

Line Drawings
