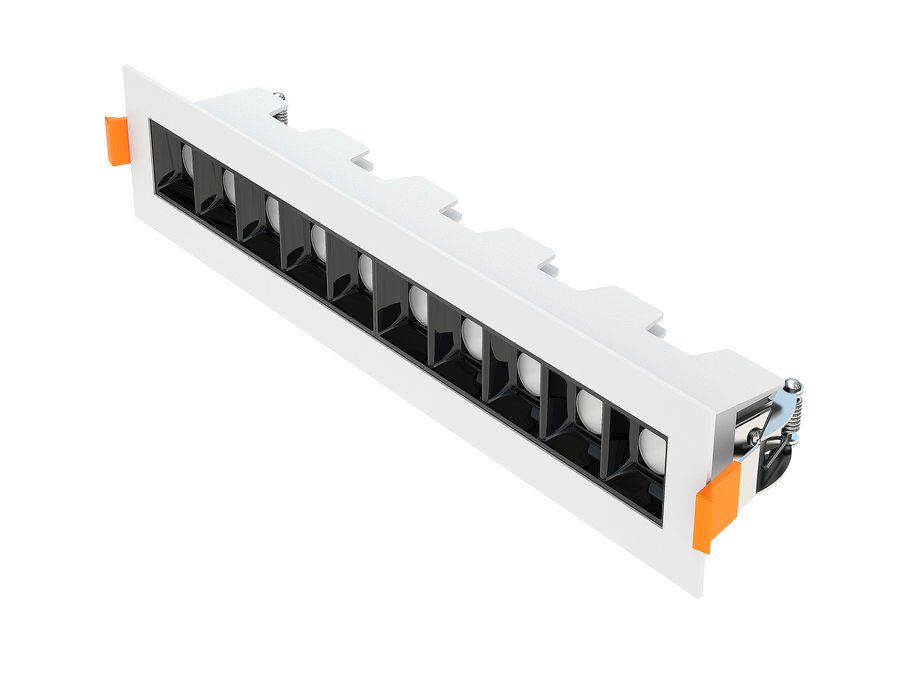

DL-M-10-CCT-T
20W
1100
55
80+
Color Temperature
2700K
3000K
3500K
4000K
and 5000K

Overview
A sophisticated modular approach to linear lighting, available in 5-head (10W) and 10-head (18W) configurations, with a black anti-glare shield and precision reflectors for superior luminance control.
- 5 or 10-head configurations — 750 or 1,350 lumens
- 90+ CRI, 5-CCT field selectable
- Trimmed or trimless, Matte White or Matte Black
- 100–277V universal input, Triac dimming
- ETL Listed, Wet Location, 5-Year Warranty
Specifications
Size10
Wattage20W
Lumens1100 lm
Lumen per Watt55 lm/W
CRI80+
Color Temperature (CCT)Selectable 2700K,3000K,3500K,4000K,and 5000K
Voltage120, 60hz
DimmingELV
MountingRecessed
FinishWHITE
Dimensions10
Operating Temperature0-100F
