SPL-6-SO-010-CCT-EM
SPL-6-SO-010-CCT-EM
SPL-6-SO-010-CCT-EM

SPL-6-SO-010-CCT-EM

16W
1180
90+
Color Temperature
2700K
3000K
3500K
4000K
and 5000K
Options
Certification

Overview

Slim LED Downlight

Ultra-Thin. Ultra-Flexible. Surprisingly Powerful.

Designed for tight ceiling spaces and retrofit applications, the Slim LED Downlight delivers high-performance lighting where traditional recessed fixtures cannot be installed. Its ultra-thin design allows it to fit into shallow ceilings, under joists, and in compact soffits while providing smooth, uniform illumination.

This all-in-one downlighting solution is ideal for contractors who need fast installation and designers who want a clean, modern finish.

Why It’s a Go-To Fixture:

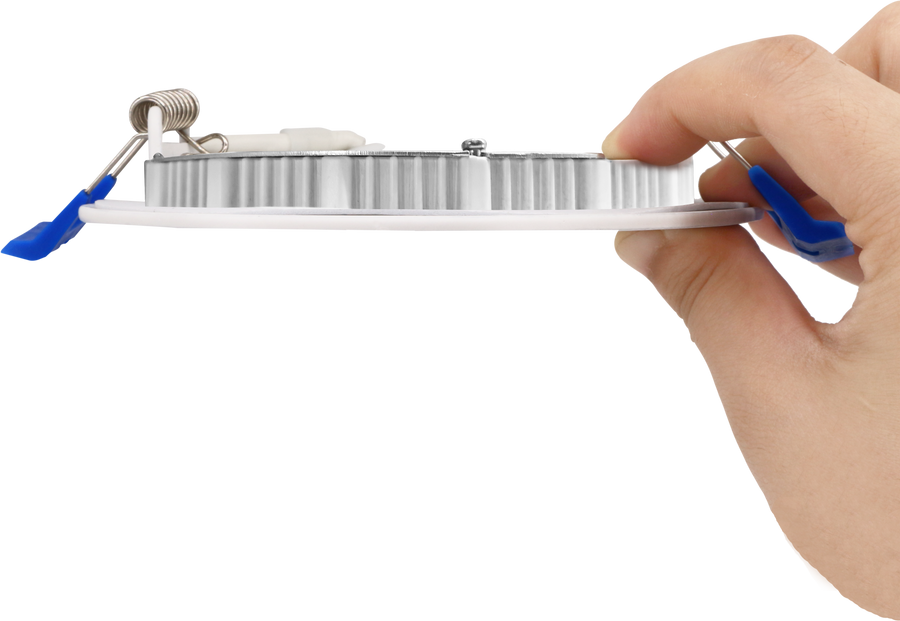

  • Super Slim Profile: Less than 1 inch thick, suitable for space-constrained installations

  • Easy, Fast Installation: No housing required — simple cut, connect, and snap-in design

  • Smooth, Wide Beam: Edge-lit optics provide even, glare-free light distribution

  • Multiple Sizes & Shapes: Available in round or square options (4″, 6″, 8″) to suit different designs

  • Selectable CCT & Dimming: Adjustable color temperature and dimming options for flexibility

  • IC-Rated & Airtight: Suitable for residential and commercial ceilings, meeting code requirements

Suitable for new construction and renovation projects, including apartments, hotels, and commercial spaces, this fixture combines compact design with reliable performance.

Small form. Big impact. Recessed lighting, reimagined.

Specifications

Size6
Wattage16W
Lumens1180 lm
CRI90+
Color Temperature (CCT)Selectable 2700K,3000K,3500K,4000K,and 5000K
Voltage120V, 60Hz
Dimming0-10v
MountingRecessed
FinishWhite
Dimensions6.69x4.92x.93
Beam Angle120
Operating Temperature-20°F to 100°F

Line Drawings
