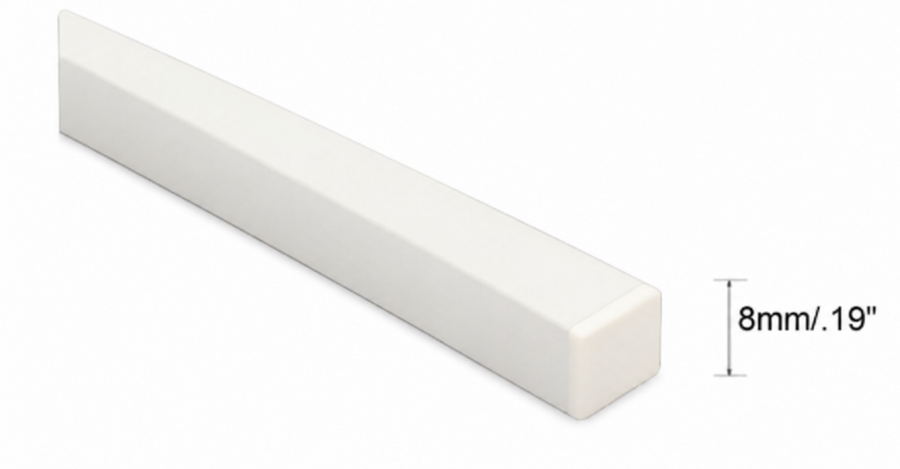

DLDT-TINI-3500-20
DLDT-TINI-3500-20
DLDT-TINI-3500-20
DLDT-TINI-3500-20
DLDT-TINI-3500-20
DLDT-TINI-3500-20

DLDT-TINI-3500-20

89
90+
Color Temperature
3500K
Options
Certification

Overview

Engineered for applications where every millimeter counts — at just 0.06" thick, TINI disappears into the tightest architectural channels and reveals while delivering smooth, dot-free illumination.

  • 0.06" ultra-thin profile, dot-free output
  • Cuts every 0.98" for precise lengths
  • 80+ CRI, seven CCT options (2200K–5000K)
  • IP20 or IP67, 0-10V/Triac/ELV/MLV dimmable
  • ETL Listed, UL 8750

Specifications

Size16FT Max Run
Lumen per Watt89 lm/W
CRI90+
Color Temperature (CCT)3500K
Voltage24VDC
DimmingYes
MountingSurface
Dimensions0.2"
Beam Angle120
Operating Temperature0-100°F
Wattage per Foot3.0W/ft
Lumen per Foot267 lm/ft

Line Drawings

DLDT-TINI-3500-20 drawing 1
