Home Surface Disc Downlight CJB-12-CCT-SO-010
CJB-12-CCT-SO-010

CJB-12-CCT-SO-010

22W
1500
90+
Color Temperature
2700K
3000K
3500K
4000K
and 5000K
Options
Certification

Overview

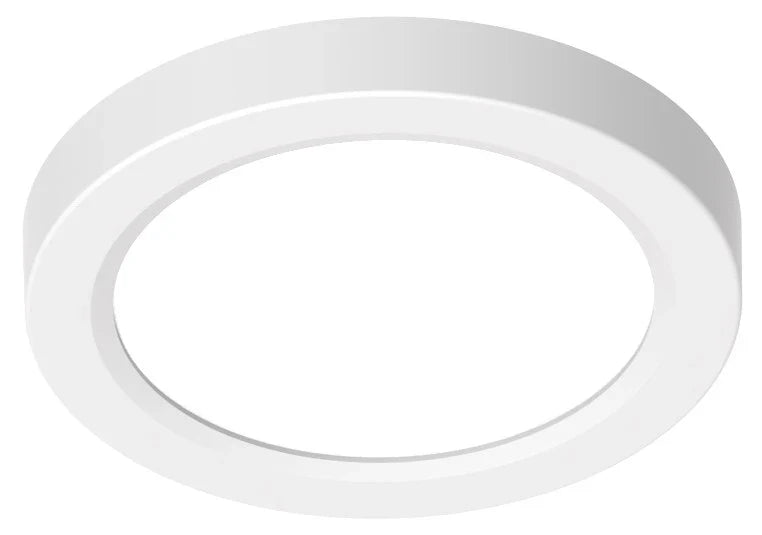

An ultra-sleek flush-mount LED ceiling light. Its minimalist profile hugs the ceiling, creating an illusion of expanded height, with CCT-selectable technology to dial from a cozy 2700K to a crisp 5000K for any mood or application.

  • Seven sizes — 5" through 24", from residential to large commercial
  • 5CCT selectable (2700K–5000K), 90 CRI, 90 LPW efficacy
  • Standard Output (SO) and High Output (HO) configurations
  • ELV/Triac dimming (120V); 0–10V optional via 010 driver
  • Wet Location rated, 5-Year Warranty

Specifications

Size12
Wattage22W
Lumens1500 lm
CRI90+
Color Temperature (CCT)Selectable 2700K,3000K,3500K,4000K,and 5000K
Voltage120V, 60Hz
Dimming0-10v
MountingSurface
FinishWhite
Dimensions12x11x5/8
Beam Angle120
Operating Temperature10-120F

Line Drawings
