RGBW

Technical Details

Model Number:

DLDT-RGBW

Wattage

6

Lumen Per Watt

43.33333333

Lumen

260

CCT

R,G,B + 30K

Dimensions

10MM

Mounting

In Channel

Input Voltage

24VDC

CRI

90

Beam Angle

115

Rating

IP20/76

Dimming

Driver Dependant

Cut Point

1.97

LED Chip

2835

RGBW Tape Light Cut Sheet
Description

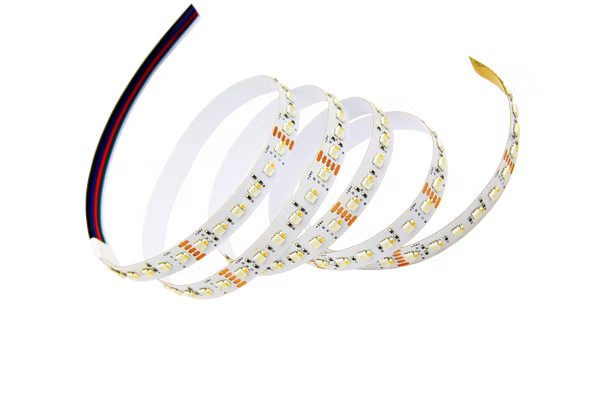

RGBW LED Tape Light



Bend the Rules. Shape the Mood.

Light where you want it, how you want it. The RGBW LED Tape Light is a game-changer in architectural flexibility — ultra-thin, field-cuttable, and wildly versatile.

From toe kicks to coves, signage to stairs, display cases to under-cabinet glam — LED tape opens up a whole new dimension of design freedom. It disappears into architecture during the day and delivers smooth, even illumination when it matters.

Why It Stands Out:

  • Tight Pixel Pitch: No dotting, no scalloping — just clean, continuous glow
  • High Output or Low Power Options: Tailor output to mood, not limits
  • Custom Cut & Connect: As short as 1″ intervals for exact fits
  • Waterproof Grades Available: IP20, IP65, IP67 — bring the glow outdoors
  • Control It All: Static white, tunable white, RGB, RGBW, DMX… you name it

Pair with aluminum channels and diffusers for pro-level installations, or mount it bare for edge-lit minimalism. Either way, LED tape is the magic trick behind every memorable space.

Design without limits. Light without compromise.

Additional information
Model Number:

DLDT-RGBW

Wattage

6

Lumen Per Watt

43.33333333

Lumen

260

CCT

R,G,B + 30K

Dimensions

10MM

Mounting

In Channel

Input Voltage

24VDC

CRI

90

Beam Angle

115

Rating

IP20/76

Dimming

Driver Dependant

Cut Point

1.97

LED Chip

2835

Certifications
Gallery

Line Drawings
