Medium Series

Technical Details

Model Number:

ML

Wattage

25

Lumen Per Watt

130

Lumen

3250

CCT

2700k

,

3000k

,

3500k

,

4000k

,

5000k

Dimensions

24.3×3.23×3.68

Input Voltage

120-277v,60hz

CRI

80

Beam Angle

120

Rating

20

Finish

White Standard, Custom Finish available

Options

Emergency Battery / Sensor

Dimming

0-10V

Medium Series Cut Sheet
Description

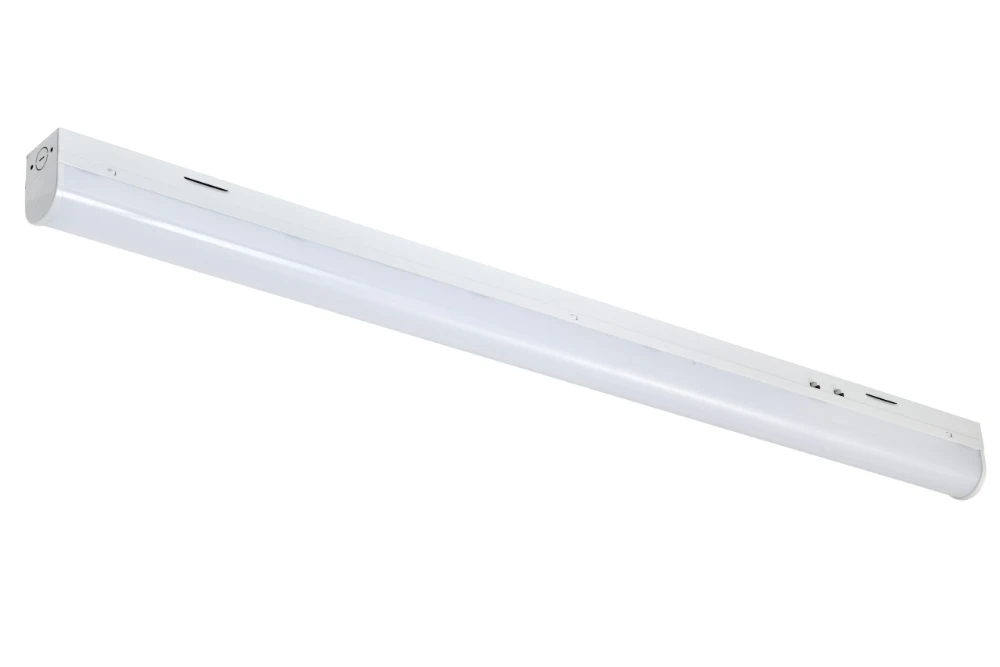

LED Linear Wraps

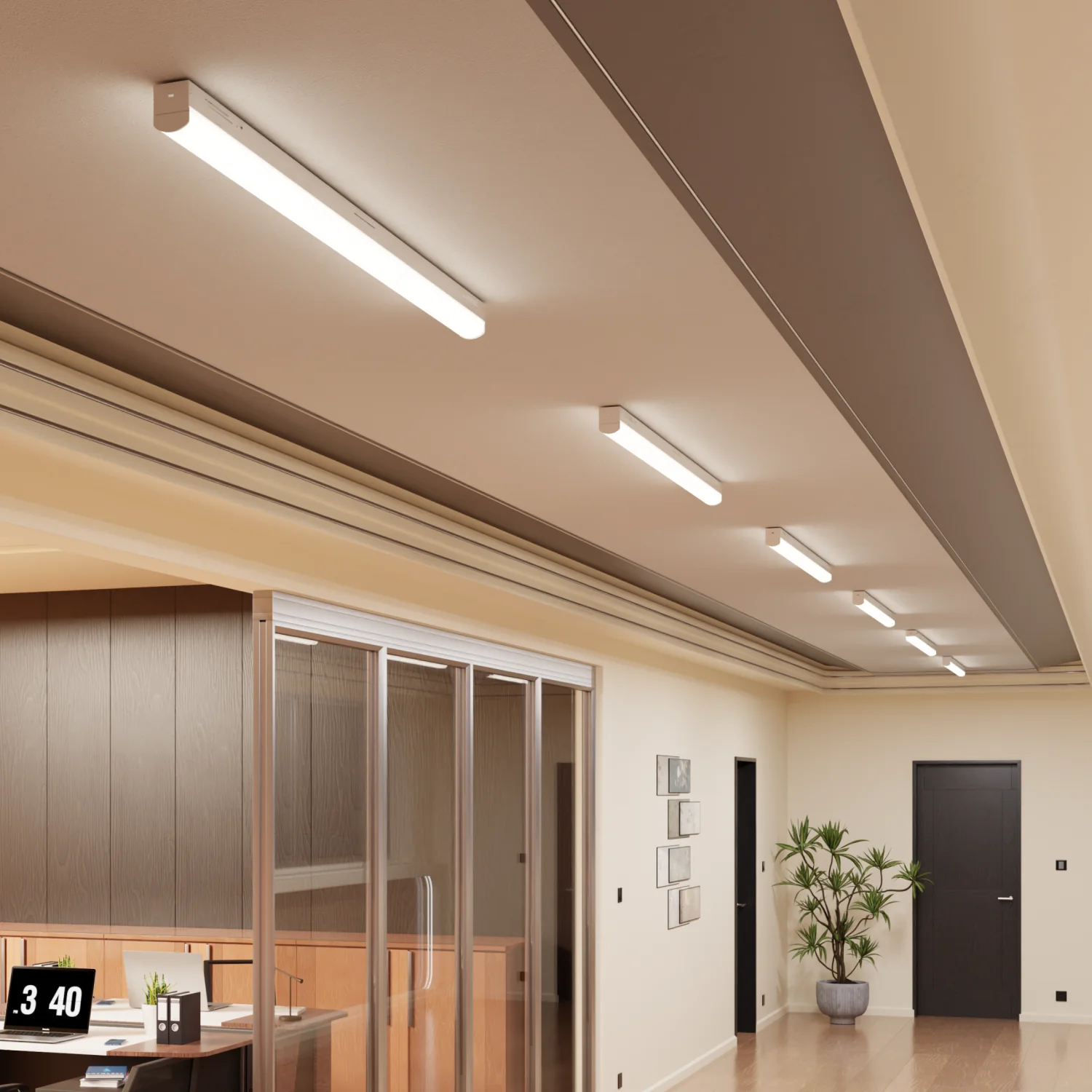

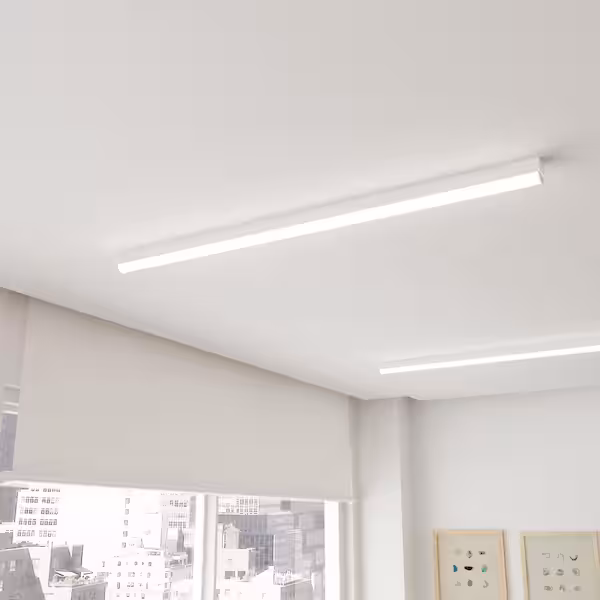

When it comes to hallways, stairwells, utility rooms, and back-of-house areas, you need lighting that just works — no fuss, no failures. That’s where our LED Linear Wraps come in: reliable, efficient, and built for the spaces that keep everything else moving.

With smooth, even distribution and a durable, low-profile design, these fixtures deliver exactly what’s needed — clarity, safety, and energy savings — without stealing the spotlight. They’re the workhorses of your lighting plan, and they don’t mess around.

Why They Belong in Your Back-of-House Spec:

  • Wide Light Distribution: Uniform, shadow-free coverage for safe navigation
  • Durable Construction: Steel housing with polycarbonate lens = built to last
  • Easy Install & Maintenance: Surface or ceiling mount with quick-access wiring
  • Energy Efficient: High efficacy with low power consumption
  • Controls-Ready: Motion sensors, bi-level dimming, and emergency options available

Perfect for schools, hospitals, hotels, and multifamily corridors — these are the fixtures that work as hard as your staff. Set it and forget it.

Additional information
Model Number:

ML

Wattage

25

Lumen Per Watt

130

Lumen

3250

CCT

2700k

,

3000k

,

3500k

,

4000k

,

5000k

Dimensions

24.3×3.23×3.68

Input Voltage

120-277v,60hz

CRI

80

Beam Angle

120

Rating

20

Finish

White Standard, Custom Finish available

Options

Emergency Battery / Sensor

Dimming

0-10V

Certifications
