Flex-Side

Technical Details

Model Number:

DLDT-FLEX-SIDE

Wattage

4

Lumen Per Watt

35

Lumen

140

CCT

2200k

,

6000k

Dimensions

12mm

Mounting

In Channel

Input Voltage

24VDC

CRI

90

Beam Angle

160

Rating

IP20/73

Dimming

Driver Dependant

Cut Point

1.9"

LED Chip

2835

Flex-Side Cut Sheet
Description

Bend the Rules. Shape the Mood.

Light where you want it, how you want it. The LED Tape Light is a game-changer in architectural flexibility — ultra-thin, field-cuttable, and wildly versatile.

From toe kicks to coves, signage to stairs, display cases to under-cabinet glam — LED tape light opens up a whole new dimension of design freedom. It disappears into architecture during the day and delivers smooth, even illumination when it matters.

Why It Stands Out:

  • Tight Pixel Pitch: No dotting, no scalloping — just clean, continuous glow
  • High Output or Low Power Options: Tailor output to mood, not limits
  • Custom Cut & Connect: As short as 1″ intervals for exact fits
  • Waterproof Grades Available: IP20, IP65, IP67 — bring the glow outdoors
  • Control It All: Static white, tunable white, RGB, RGBW, DMX… you name it

Pair with aluminum channels and diffusers for pro-level installations, or mount it bare for edge-lit minimalism. Either way, LED tape is the magic trick behind every memorable space.

Design without limits. Light without compromise.

Additional information
Model Number:

DLDT-FLEX-SIDE

Wattage

4

Lumen Per Watt

35

Lumen

140

CCT

2200k

,

6000k

Dimensions

12mm

Mounting

In Channel

Input Voltage

24VDC

CRI

90

Beam Angle

160

Rating

IP20/73

Dimming

Driver Dependant

Cut Point

1.9"

LED Chip

2835

Certifications
Gallery

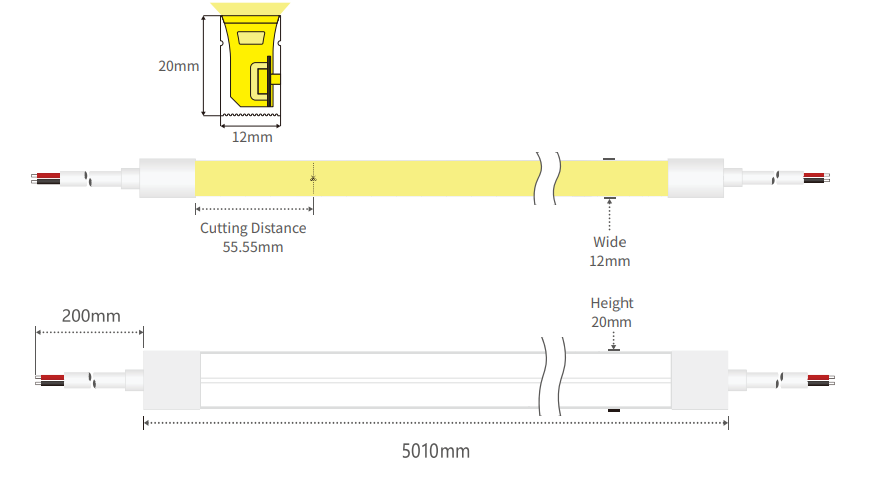

Line Drawings
