Canopy Light Low Output

Technical Details

Model Number:

DLCN-L

Wattage

40

,

60

,

75

Lumen Per Watt

135

Lumen

10125

,

5400

,

8100

CCT

3000k

,

4000k

,

5000k

Dimensions

10X10

Mounting

Surface

Input Voltage

120-277v,60hz

CRI

80

Beam Angle

145

Rating

Outdoor

Finish

Bronze Standard

Options

EM, MMS, PIR

Dimming

0-10 volt

DLCNL Cut Sheet
Description

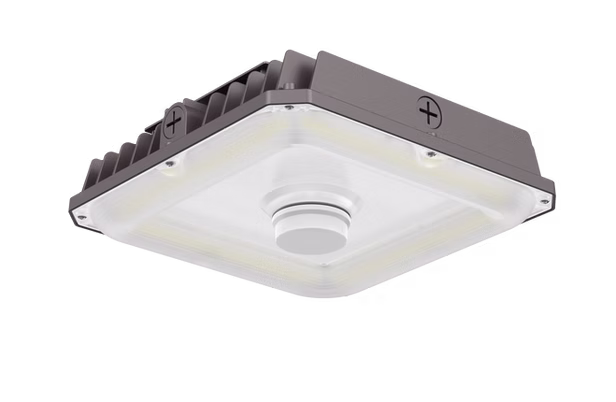

Outdoor LED Canopy Light

Tough, Bright, and Built to Last

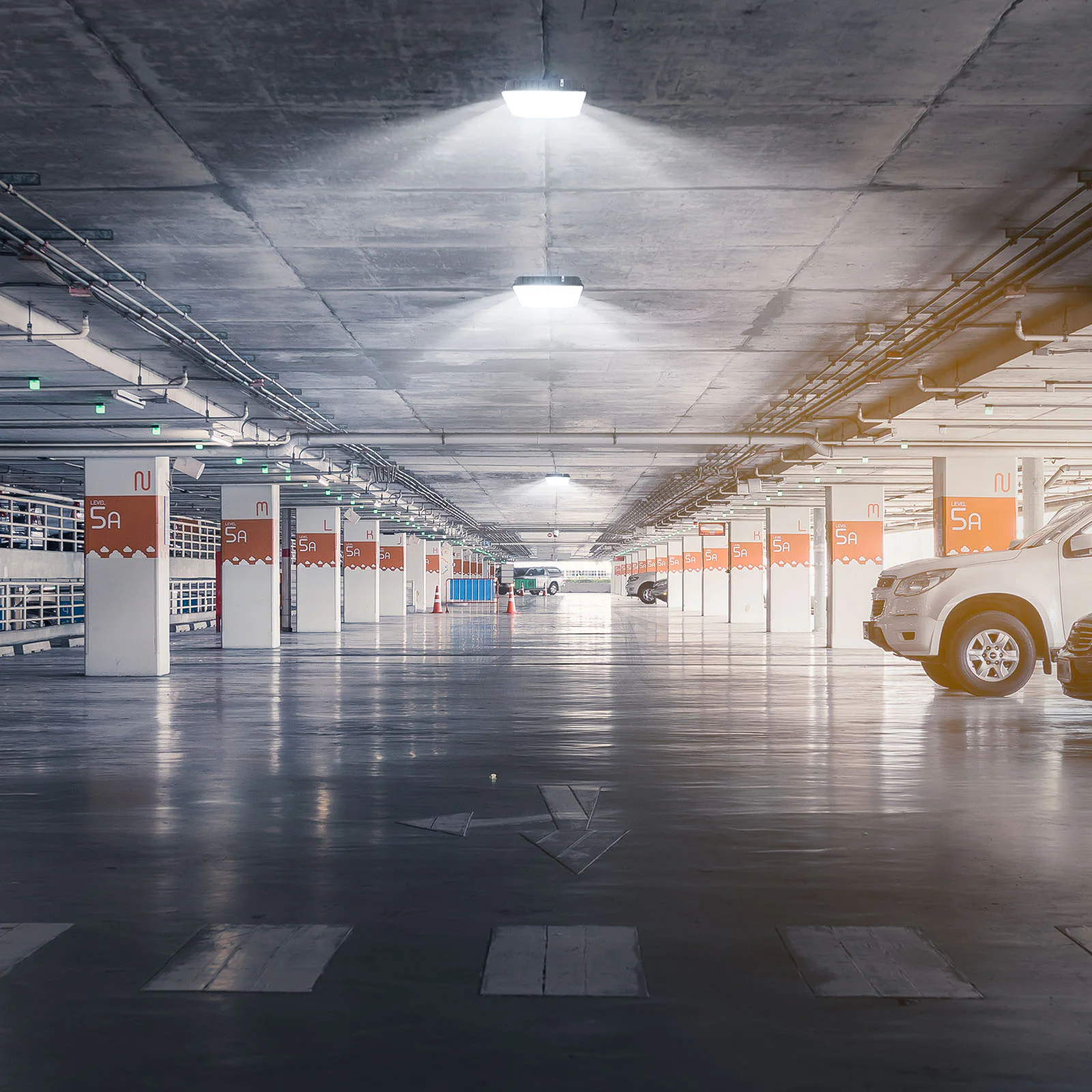

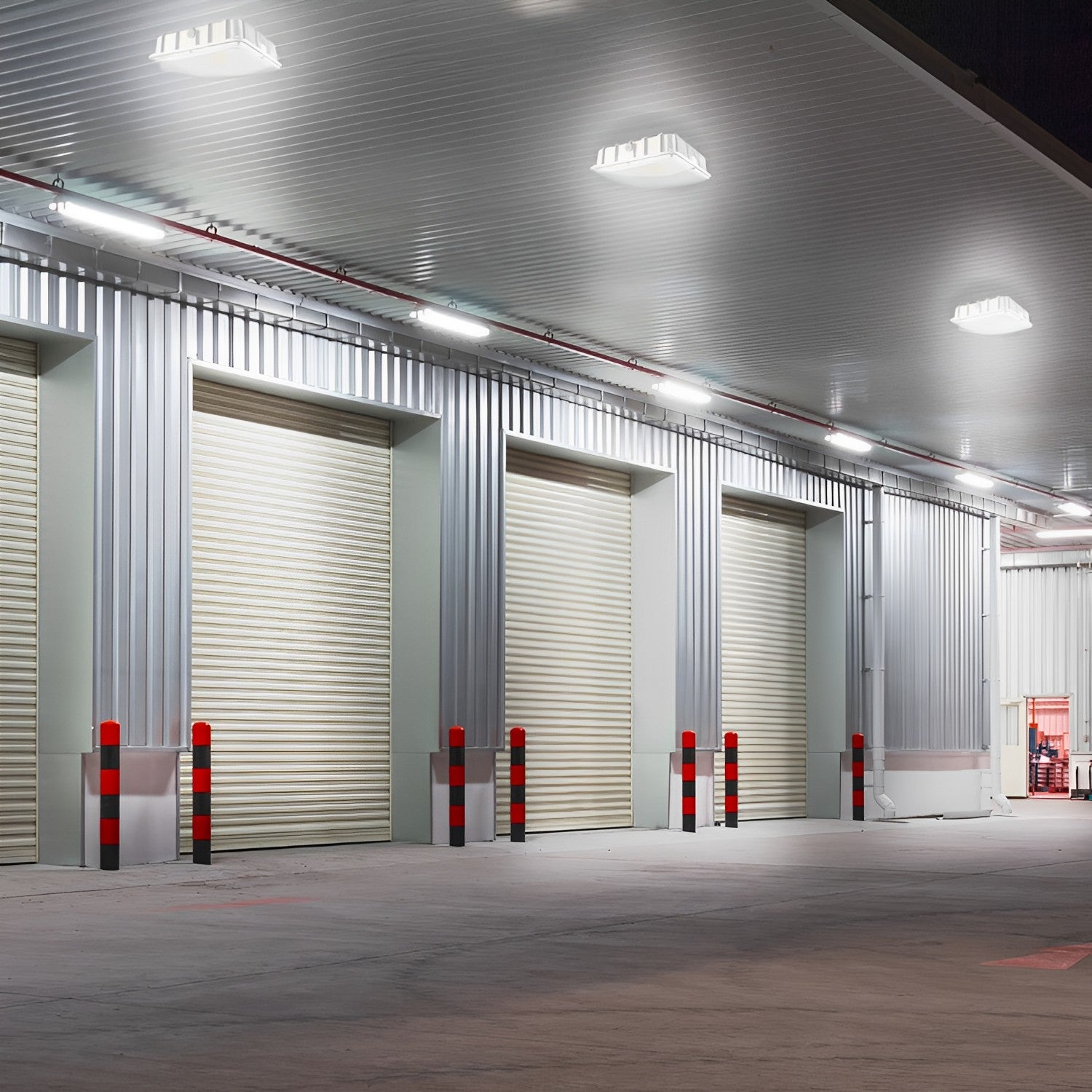

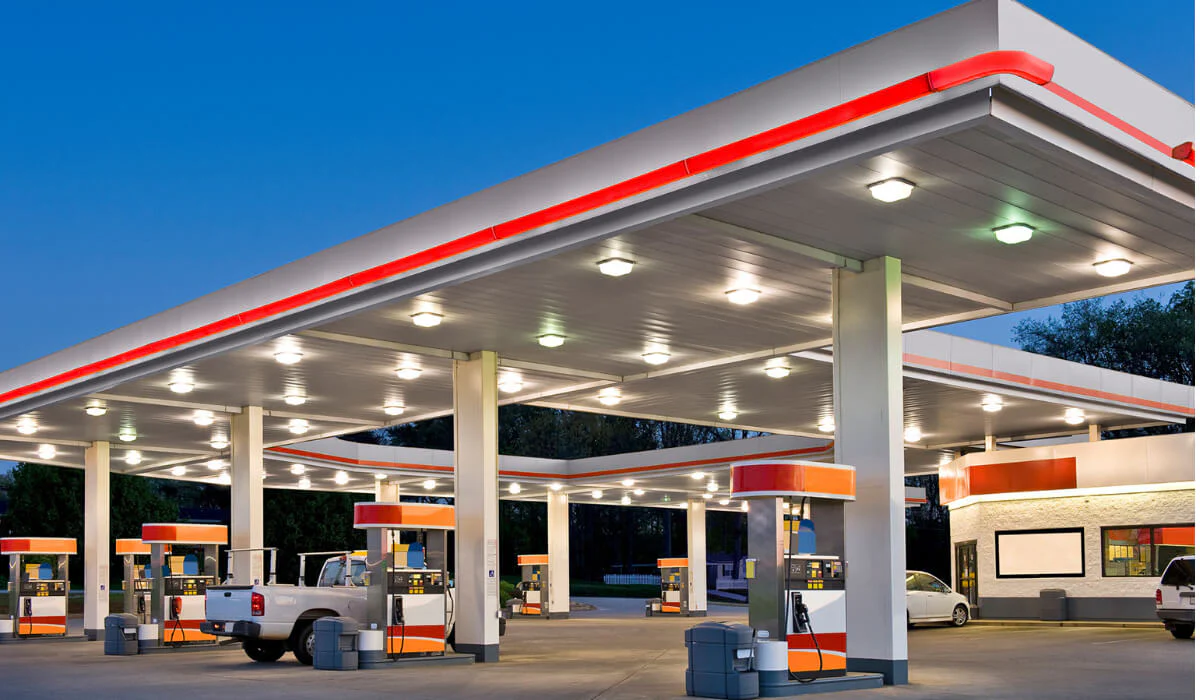

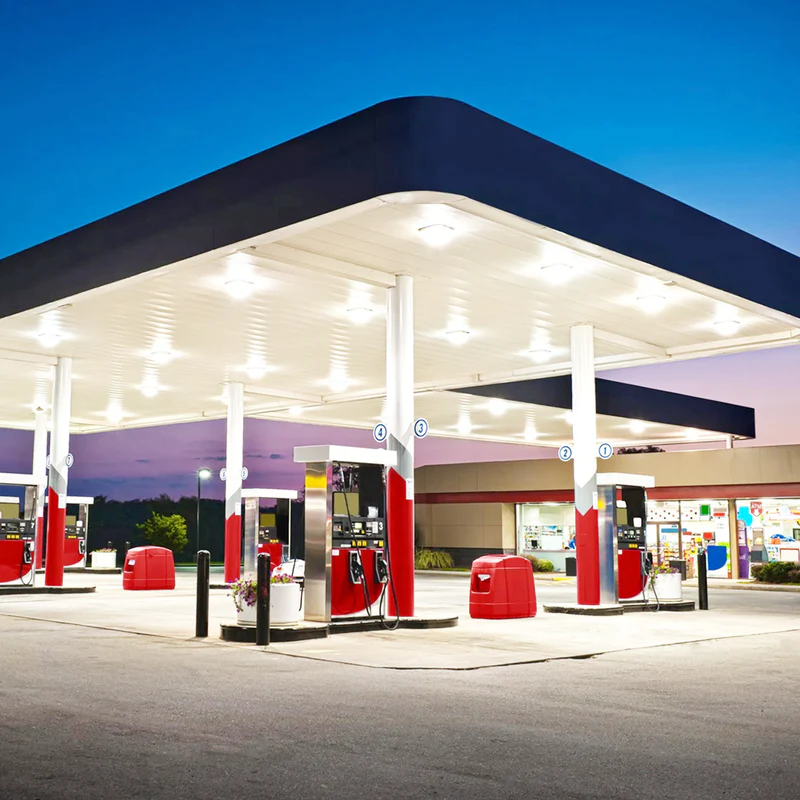

The Outdoor LED Canopy Light is where rugged performance meets uncompromising efficiency. Designed for parking garages, loading docks, gas stations, and other demanding outdoor environments, this fixture laughs in the face of the elements while delivering industry-leading light output.

Engineered with vandal-resistant housings, sealed optics, and an IP65+ rating, these fixtures hold the line in rain, dust, wind, and wear. But don’t be fooled by the muscle — this fixture has brains too: motion sensors, daylight harvesting, and adaptive controls come standard or optional, making it smarter than your average brute.

Key Features:

  • Wide & Uniform Distribution: Zero dark zones = maximum safety
  • Durable Build: Die-cast aluminum, polycarbonate lens, IK10 impact rating
  • Easy Mounting: Surface, pendant, or junction box — fast, flexible installs
  • Low Maintenance: 50,000+ hours of hassle-free lighting
  • Options Galore: CCT tuning, motion sensing, dimmable drivers

For clients who need bulletproof reliability with modern efficiency — this is the canopy fixture that gets the job done. Day or night. Rain or shine.

Reliability. Visibility. Security. All in one rugged fixture.

Additional information
Model Number:

DLCN-L

Wattage

40

,

60

,

75

Lumen Per Watt

135

Lumen

10125

,

5400

,

8100

CCT

3000k

,

4000k

,

5000k

Dimensions

10X10

Mounting

Surface

Input Voltage

120-277v,60hz

CRI

80

Beam Angle

145

Rating

Outdoor

Finish

Bronze Standard

Options

EM, MMS, PIR

Dimming

0-10 volt

Certifications
Gallery

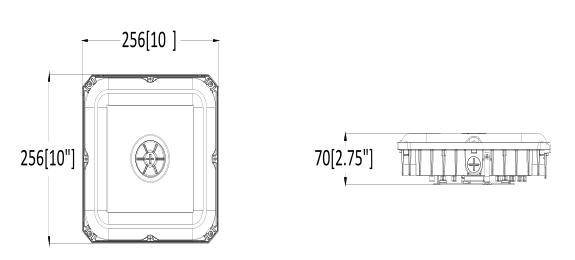

Line Drawings
